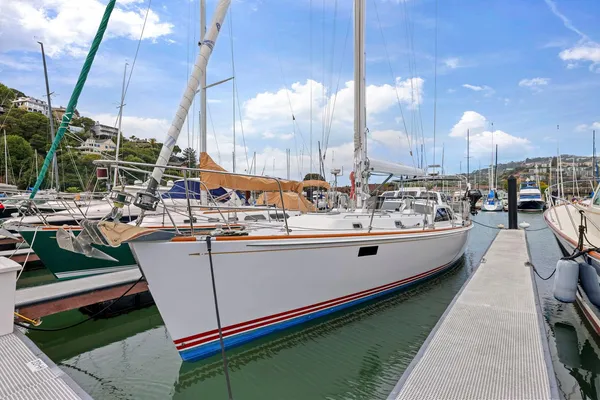

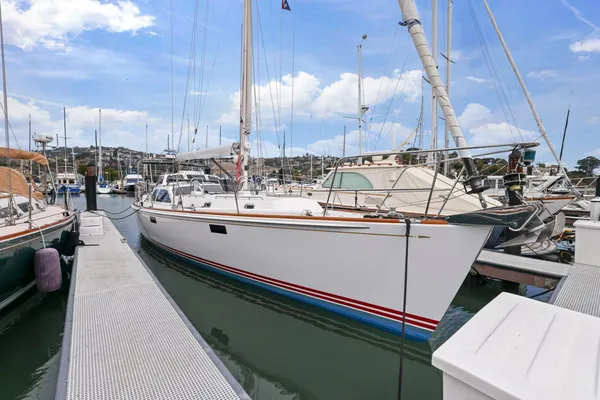

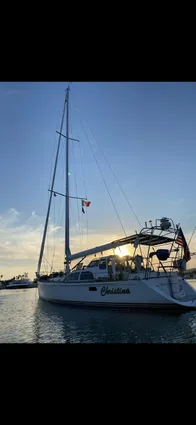

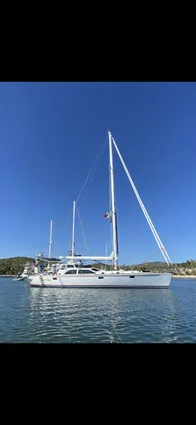

2005 Morris 486

• Hull is foam core construction with a continuous Kevlar-E glass laminate layer in outer and inner skin.
• Deck permanently bonded to hull with 3M 5200 marine adhesive and through­ bolted.
• Port and Starboard longitudinal outboard girders and bilge stringers.
• Structural bulkheads are marine grade plywood glassed to the hull and deck.

• Deck is foam core construction reinforced with unidirectional fibers and the flange is solid fiberglass where it attaches to the hull.
• Gelcoat deck with Awlgrip nonskid. Hydrex vinylester resin.
• High-density foam has replaced standard core material where fasteners are required.
• Forepeak storage area separate from forward cabin by watertight bulkhead.

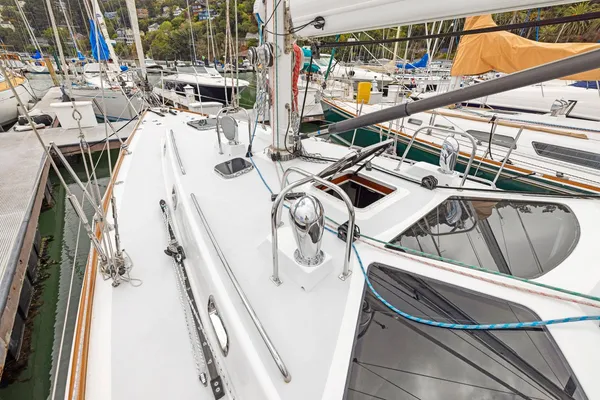

• (4) fiberglass Dorade boxes with hood SS cowl vents, screens, and closures.
• (2) SS solar vents for additional ventilation

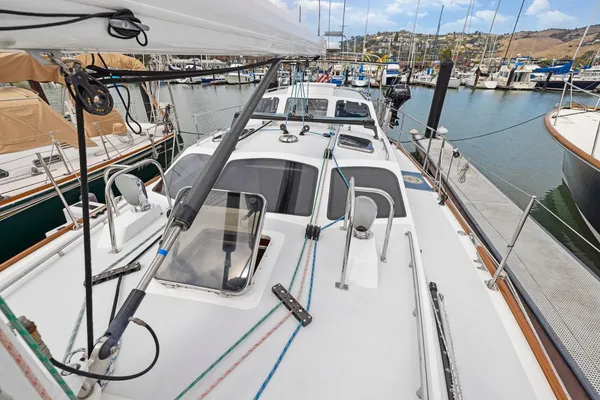

•  Large flush deck fiberglass foredeck hatch with molded gutters to access chain locker

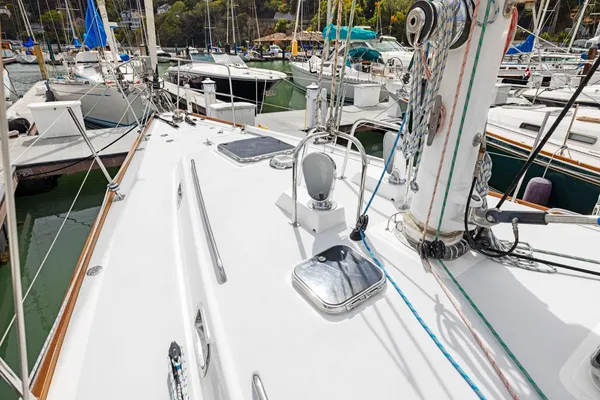

• (6) Bomar Voyager SS hatches.
• Vented propane locker.

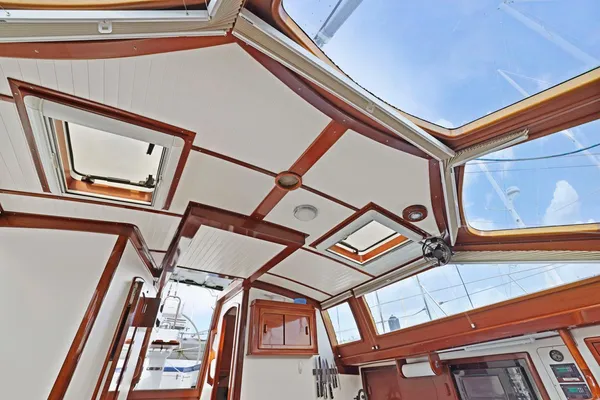

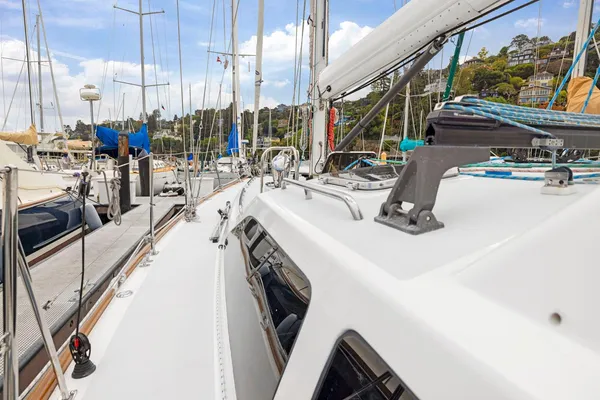

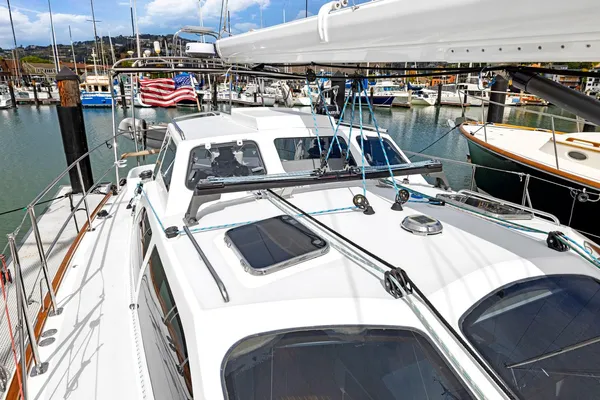

• Pilothouse has (4) bent glass windows and (3) flat glass windows made from laminated safety glass.
• Custom built SS 30" double bow rail, stern rail, lifelines. Stern rail extends forward to the boarding gate and has attachment points for the Bimini. Raised SS arch for mounting radar, GPS, VHF, and TV antennas.
• Varnished teak tow rails with custom SS chocks in toe rail.

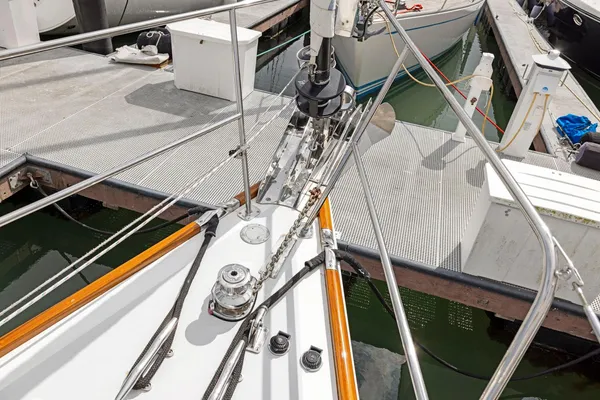

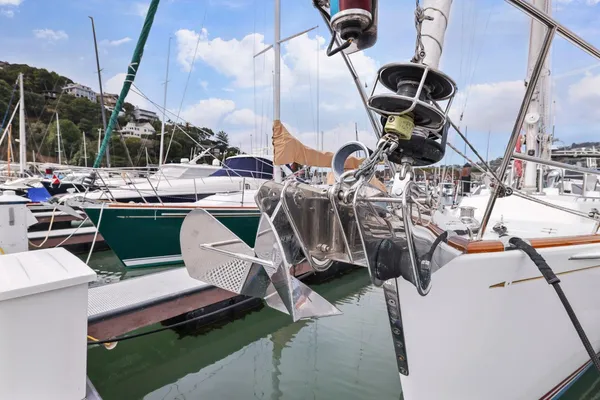

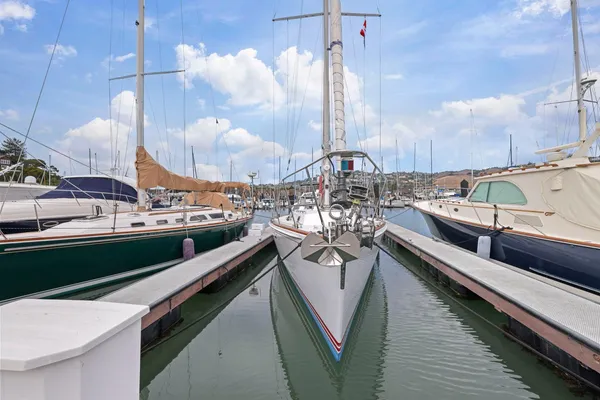

• Stainless steel bow fitting with double anchor roller.
• Electric Lewmar Ocean 1 windlass
• Nylon strap jacklines for each side deck
• Winches: (2) Harken 64 STEC Electric Primaries, (2) Harken 48 STEC Electric
• Secondaries, (2) Harken 44 STC manual slef-tailing mast winches, (1) Harken SC mast winch, (1) Harken 48 STEC electric main halyard winch, (1) Harken 48 STEC electric self-tailing main sheet winch, (1) Harken 48 STEC Electric for main sheet

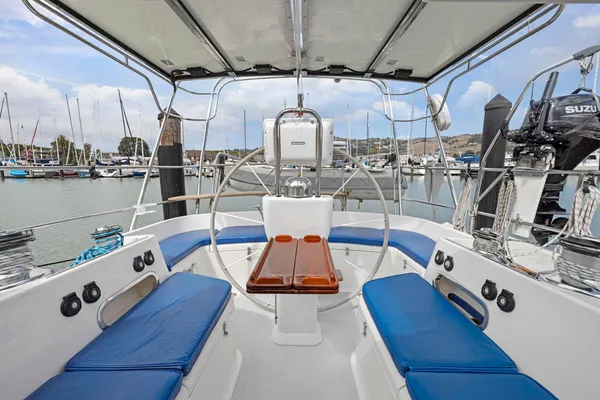

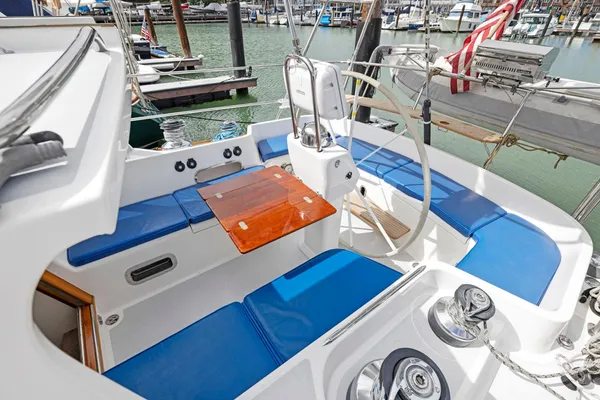

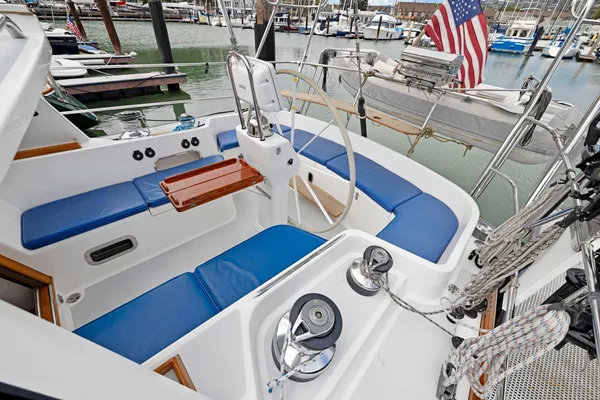

• Large cockpit perfect for extended cruising.
• Custom fiberglass dodger with (2) opening front windows and overhead dome lights
• Canvas Bimini
• Teak drop boards with storage bag. Folding teak helm step. Teak seat mounted to stern rail.
• Teak cockpit table with (2) leaves, with canvas storage bag.
• Cockpit cushions
• Edson Classic 401 pedestal with through shaft wheel brake, single lever control, SS guard and 54" Diamond series aluminum wheel

• Offshore Awlgripped white (re-painted 2020) Carbon Fiber two-spreader mast
• New mast wiring (2020)
• Majority of running rigging replaced in 2020
• Forespar carbon fiber spinnaker pole

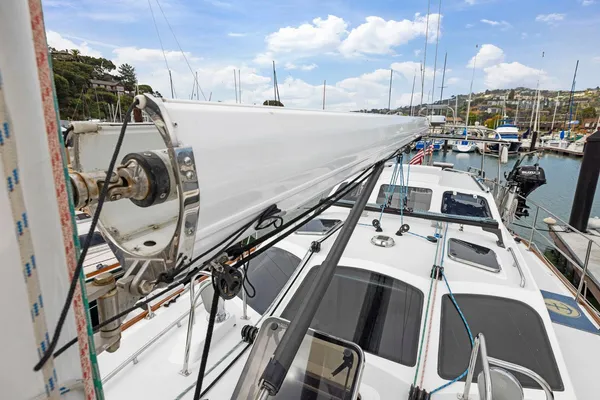

• Leisure Furl aluminum mainsail boom furling system
• Hydraulic boom vang (new 2020)
• SS rod rigging (new 2020)
• Harken Roller-Furling genoa furler
• Removable inner forestay and running backstays
• Navtec -17 hydraulic back stay adjuster
• Rebuilt backstay ram (2021)

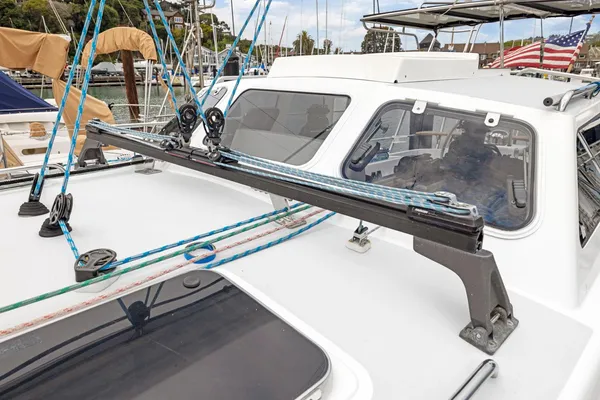

• Harken Big Boat Traveler System
• Harken Big Boat Adjustable Genoa Tracks
• Lewmar  Rope Clutches
• Masthead Tricolor light, deck light (new 2020)
• Storm trysail track
• VHF antenna (new 2020)
• New windex (2020)

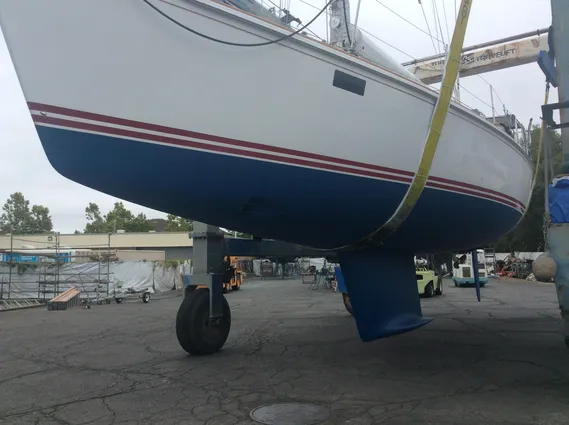

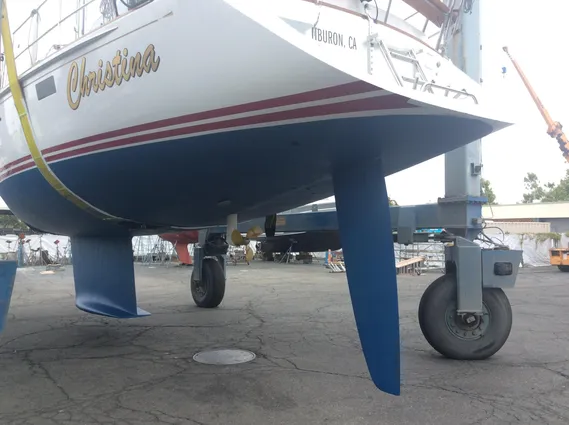

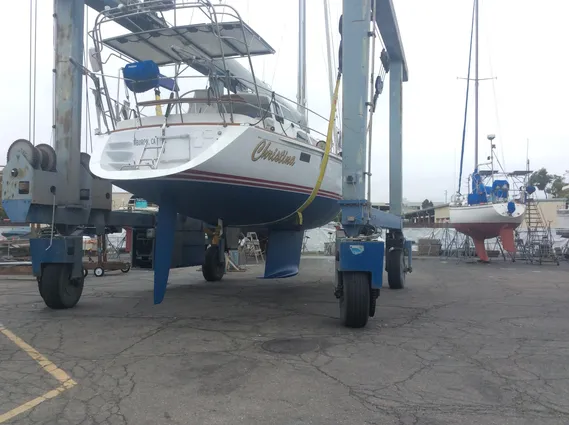

• Rudder removed, inspected, cleaned and re-installed in 2021

• North 3Di Endurance Leisure Furl Mainsail (2016)
• North Sails Furling Code Zero (2016)
• Ullman Sails Asymmetrical Spinnaker w/dousing sleeve
• Hood 95% furling jib (2021)
• Storm Stays'l

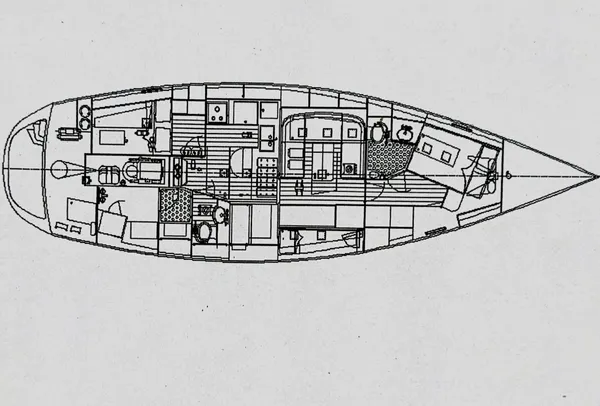

• Large master cabin and in-suite head.
• U-shaped dinette with settee.
• Full galley opposite nav station.

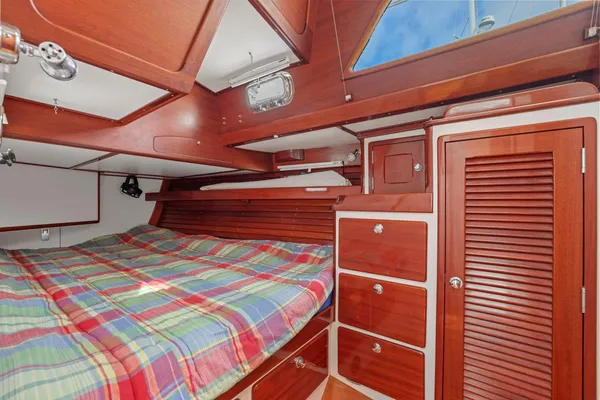

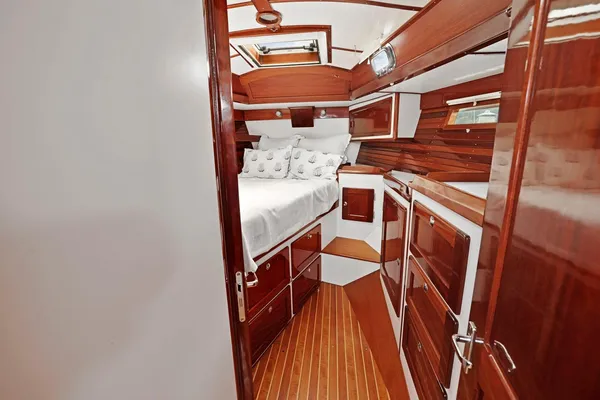

• Large double berth cabin with drawers below and overhead storage locker. Starboard dresser with countertop and two fixed hull portlights.

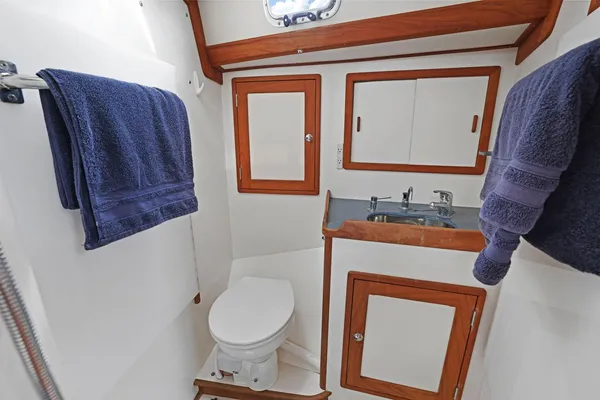

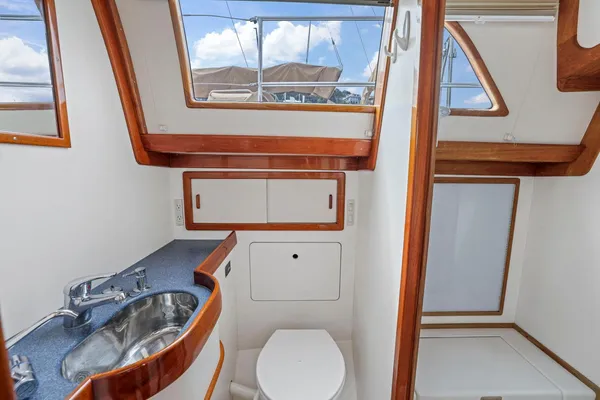

• Large aft head with separate shower. Molded fiberglass floor with integral sump and grate. Vanity and Scandvik SS mirror and bulkhead mount shower.
• Washer/dryer
• Teak and holly cabin sole finished with satin varnish
• Overhead finished with white v-groove panels
• Retractable shades over portlights

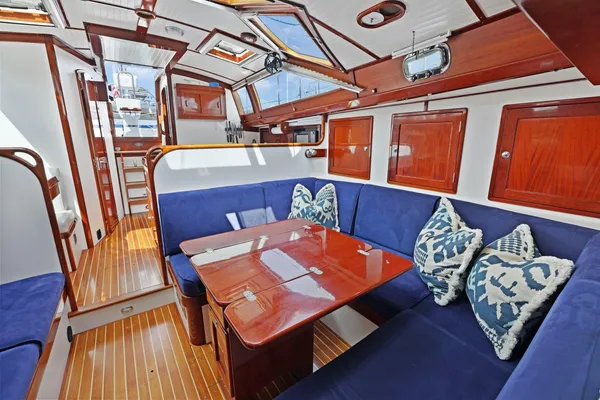

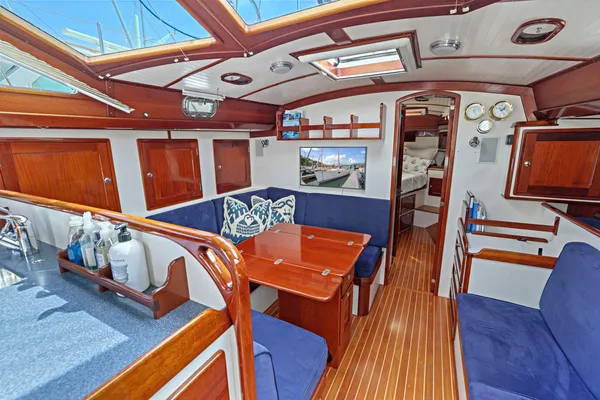

• In Main Salon: U-shaped dinette, single center seat, plenty of storage, mahogany bookshelf

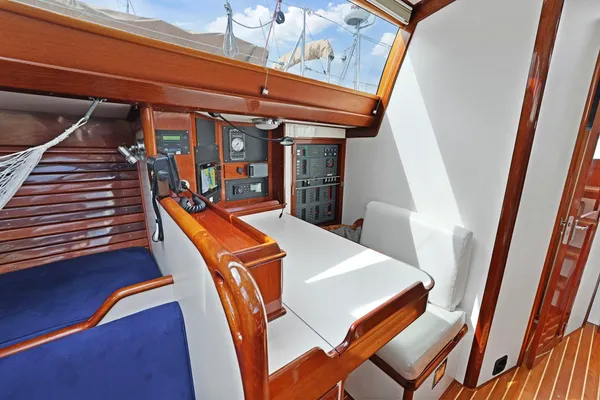

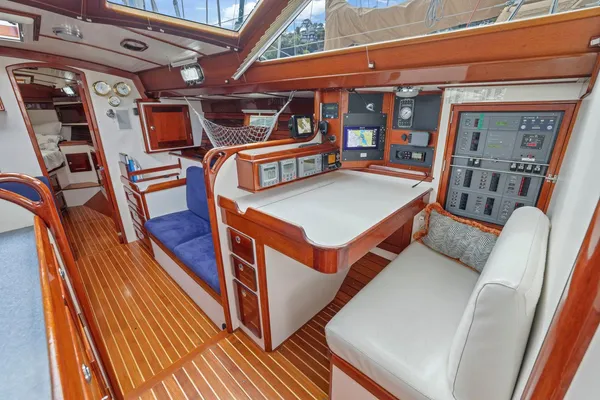

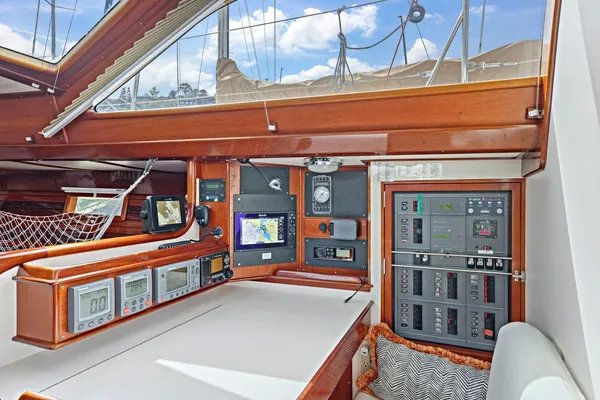

• Navigation Station: nav station with opening top for chart storage, tool tray, plush seat, shelving for electronics and books
• 27" flat screen TV (new 2023)
• Entertainment: Fusion MS-RA 70NSX stereo -A/V receiver (new 2023)
• Flush mount speakers
• Diesel heater

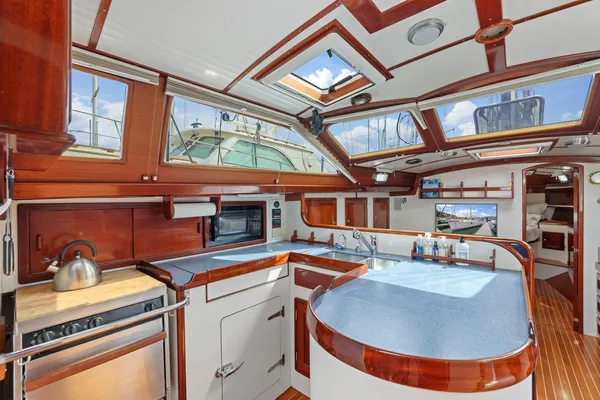

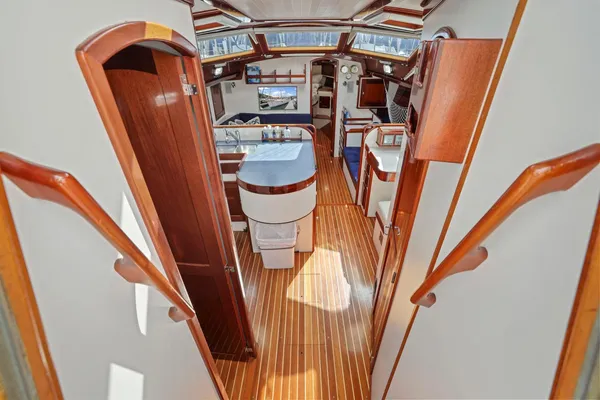

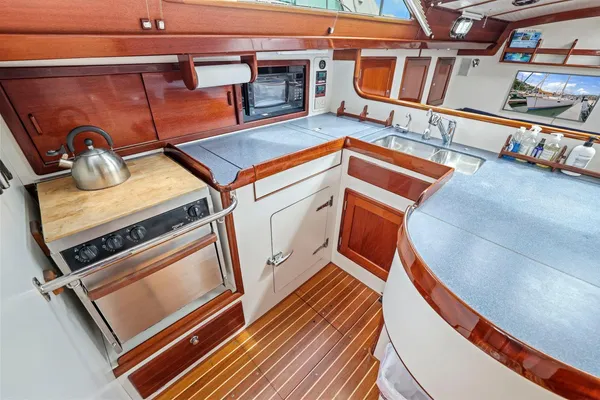

• Spacious U-shaped full galley with plenty of convenient storage
• Corian countertops, Scandvik SS under-mounted double bowl sink.
• Outboard storage locker with sliding doors
• Fiberglass icebox approximately 10.5 cubic feet, divided into fridge and freezer compartments. Adjustable shelves. 12V DC refrigeration with individual controls for each box.
• Three-burner propane stove with oven and broiler and SS crash bar
• GE 600W microwave
• Custom dish locker with storage for dishes and glasses
• Spectra watermaker

• Mastervolt custom layout panel with AC and DC breakers, controls for generator and remote battery switches
• Mastervolt chargemaster (new 2020)
• (4) 4D AFM House batteries (2017)
• (2) Optima AGM starting batteries
• Amptech 140 Amp 12-Volt alternator
• 30 amp shorepower inlet and cord
• Mastervolt 2500-watt inverter (new 2020)

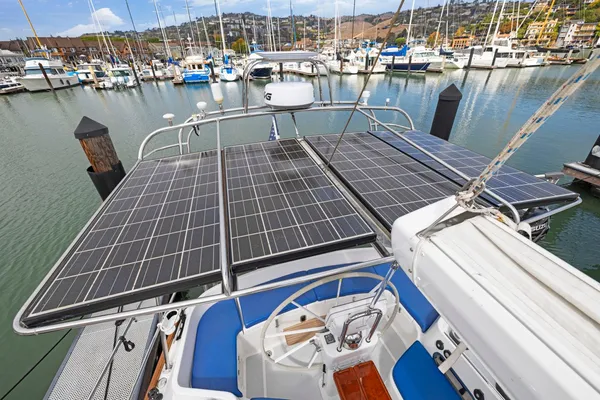

• Kyrocera 135 Solar panels on dodger and bimini frames
• Adjustable lighting throughout
• Bow Thruster

• Achilles lOlt RIB with 9.9 Suzuki outboard motor (new 2023)
• 6-man life raft (certified 2021)
• (2) Electric Johnson bilge pumps
• Edson high capacity manual bilge pump in cockpit
• (3) dry chemical fire extinguishers
• Life sling MOB device

• B&G chartplotters (Zeus 12" & 9") & radar (new 2024)
• Navpod at helm
• Raymarine ST7001 autopilot
• Raymarine ST60 displays for depth, speed, wind, and compass
• Raymarine wireless autopilot handheld smart controller
• Icom M502 VHF
• Icom M802 SSB w/AT140 tuner
• Vespar AIS

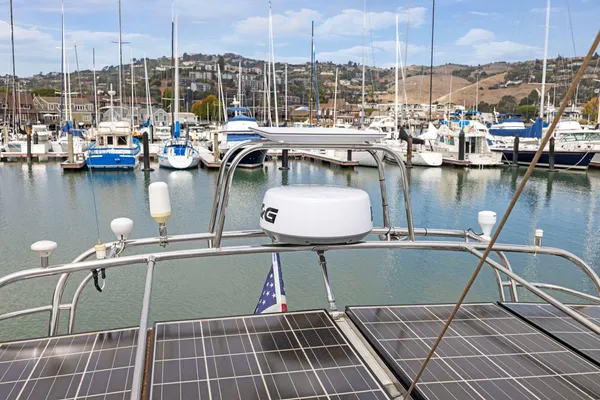

• Halo 20" radar dome (new 2023)
• Starlink (new 2024)
• s30-7 tank tender (new 2023)
