Basic Boat Info
Make: Morris
Model: 486
Year: 2005
Condition: Used
Category: Sail
Designer: C. W. Paine
Construction: Fiberglass
Boat Hull ID: TMY48004I405
Has Hull ID: Yes

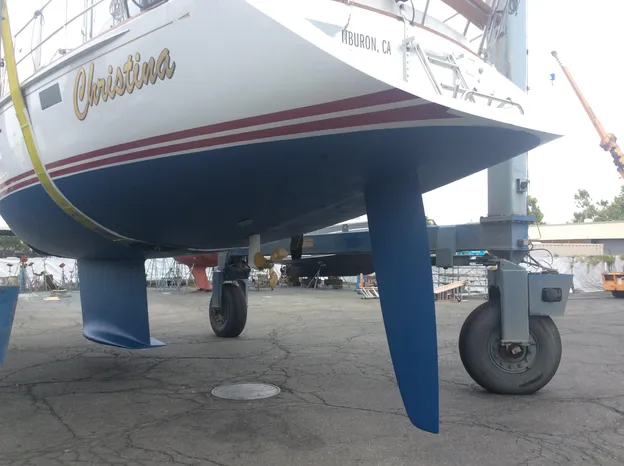

Keel Type: Fin Keel
Dimensions
Length: 48'6 ft
Length Overall: 48'6 ft
Waterline Length: 42 ft
Beam: 13'9 ft
Max Draft: 6'4 ft
Displacement: 24458 lb
Dry Weight: 24458 lb
Ballast: 10700 lb
Electrical Circuit: 110v
Cabins Count: 2
Engines / Speed

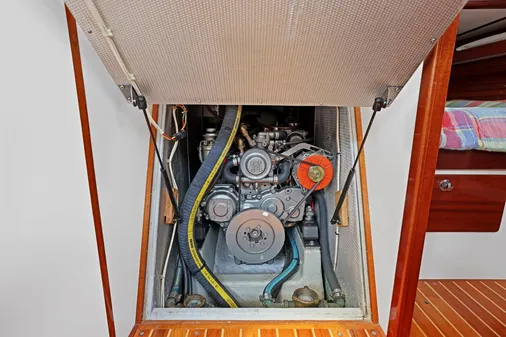

Engines: 1
- Make: Yanmar
- Model: 4JH3-TE
- Fuel: Diesel
- Engine Power: 75hp
- Type: Inboard
- Propeller Type: 3 Blade, Folding
- Engine Location: Center
- Drive Type: SailDrive
Tanks
Fuel Tanks: 1
Fuel Tank Capacity: 159 gal
Water Tanks: 1
Water Tank Capacity: 127 gal
Holding Tank Count: 1
Holding Tank Capacity: 48 gal
Other
Heads Count: 2
Total Liferaft Capacity: 6
Drive Type: Sail
Windlass Type: Electric
Boat Class: Racers and Cruisers
Contact
Patrick Nolan
Sail California
Office
Sail California
1070 Marina Village Parkway
Alameda, CA, US, 94501
Tel:510-523-8500
1070 Marina Village Parkway
Alameda, CA, US, 94501
Tel:510-523-8500
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Hull Construction
- Hull is foam core construction with a continuous Kevlar-E glass laminate layer in outer and inner skin.
- Deck permanently bonded to hull with 3M 5200 marine adhesive and through bolted.
- Port and Starboard longitudinal outboard girders and bilge stringers.
- Structural bulkheads are marine grade plywood glassed to the hull and deck.

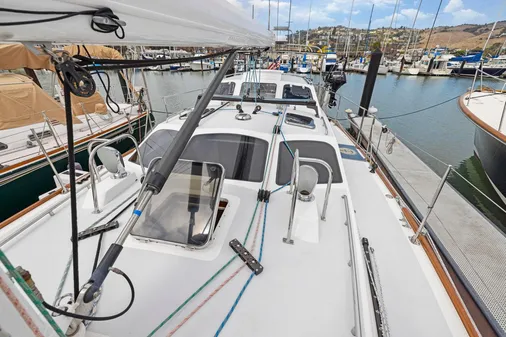

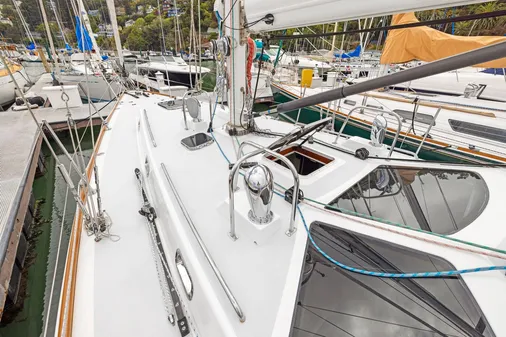

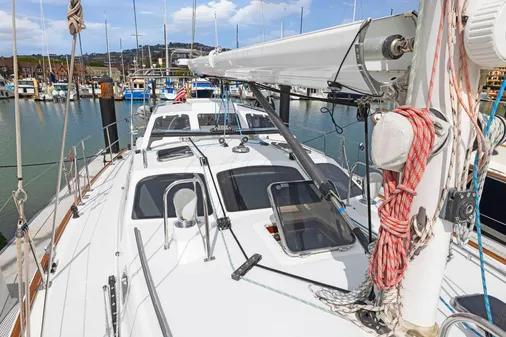

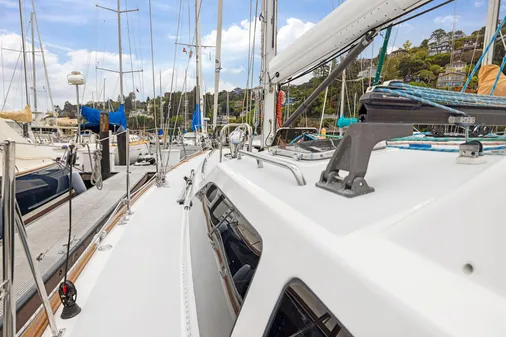

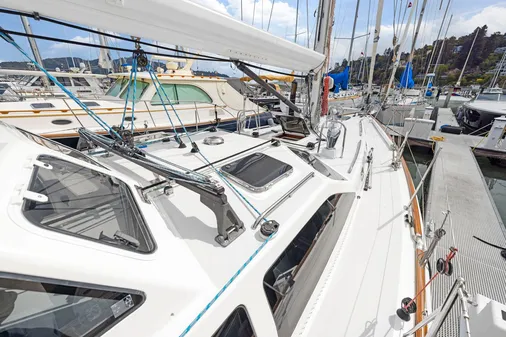

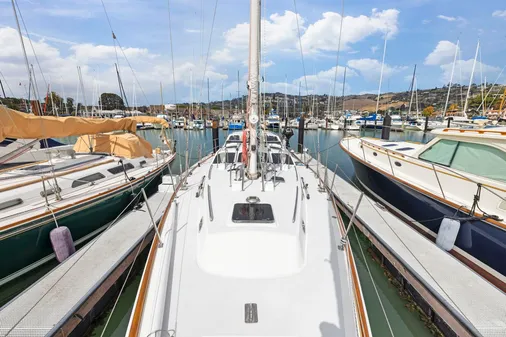

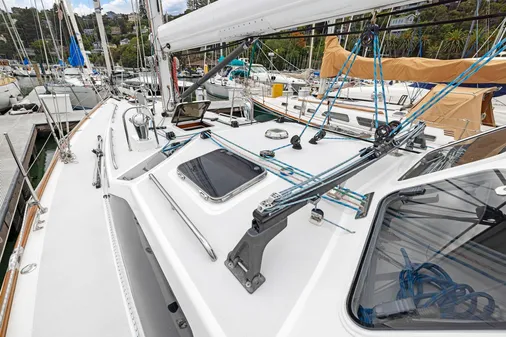

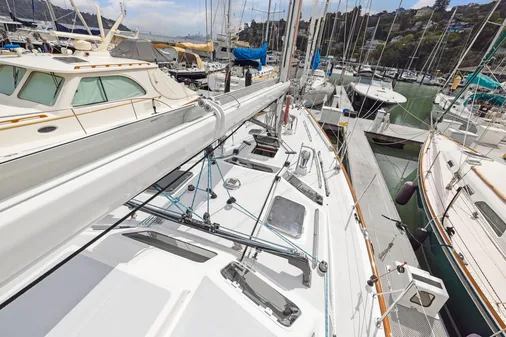

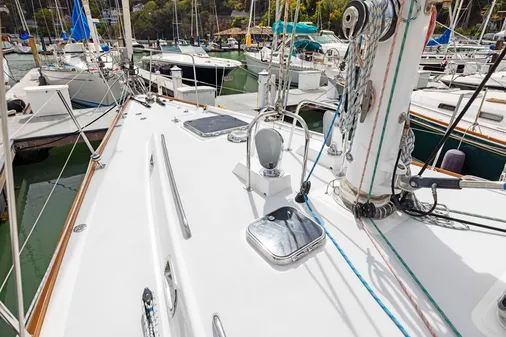

Deck Construction and Hardware
- Deck is foam core construction reinforced with unidirectional fibers and the flange is solid fiberglass where it attaches to the hull.
- Gelcoat deck with Awlgrip nonskid. Hydrex vinylester resin.
- High-density foam has replaced standard core material where fasteners are required.
- Forepeak storage area separate from forward cabin by watertight bulkhead.
- (4) fiberglass Dorade boxes with hood SS cowl vents, screens, and closures.
- (2) SS solar vents for additional ventilation

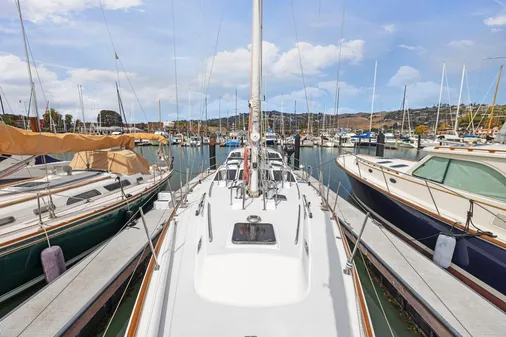

- Large flush deck fiberglass foredeck hatch with molded gutters to access chain locker
- (6) Bomar Voyager SS hatches.
- Vented propane locker.

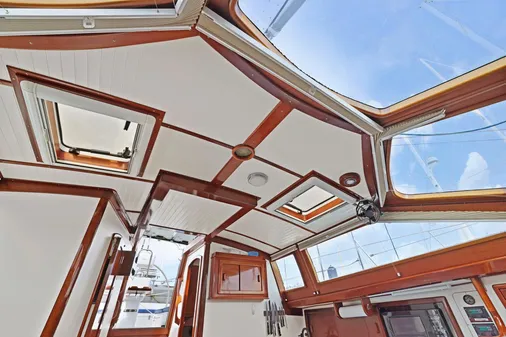

- Pilothouse has (4) bent glass windows and (3) flat glass windows made from laminated safety glass.
- Custom built SS 30" double bow rail, stern rail, lifelines. Stern rail extends forward to the boarding gate and has attachment points for the Bimini. Raised SS arch for mounting radar, GPS, VHF, and TV antennas.
- Varnished teak tow rails with custom SS chocks in toe rail.

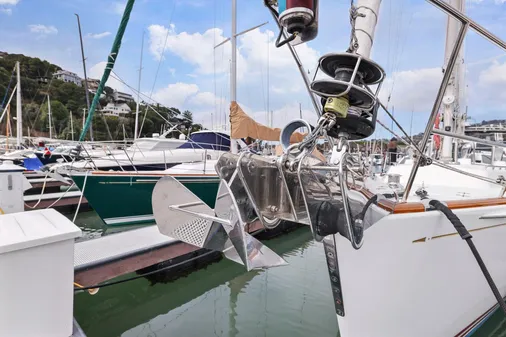

- Stainless steel bow fitting with double anchor roller.

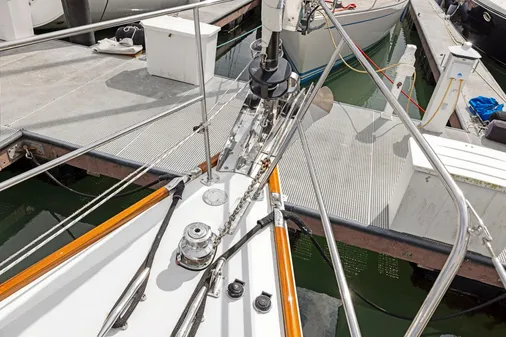

- Electric Lewmar Ocean 1 windlass
- Nylon strap jacklines for each side deck
- Winches: (2) Harken 64 STEC Electric Primaries, (2) Harken 48 STEC Electric
- Secondaries, (2) Harken 44 STC manual slef-tailing mast winches, (1) Harken SC mast winch, (1) Harken 48 STEC electric main halyard winch, (1) Harken 48 STEC electric self-tailing main sheet winch, (1) Harken 48 STEC Electric for main sheet

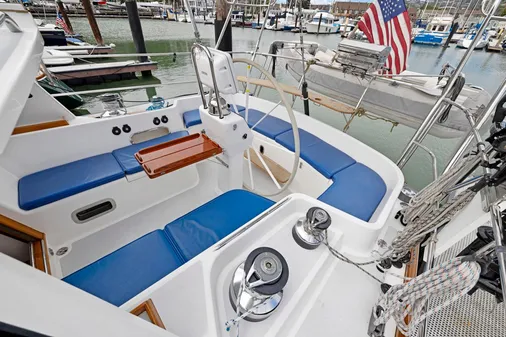

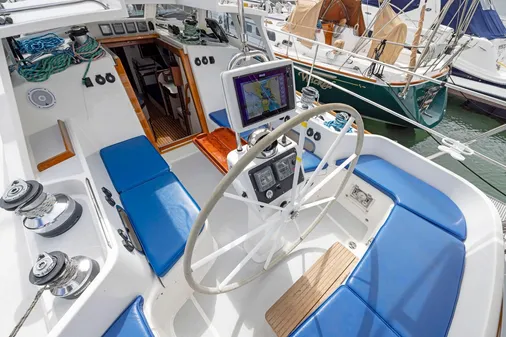

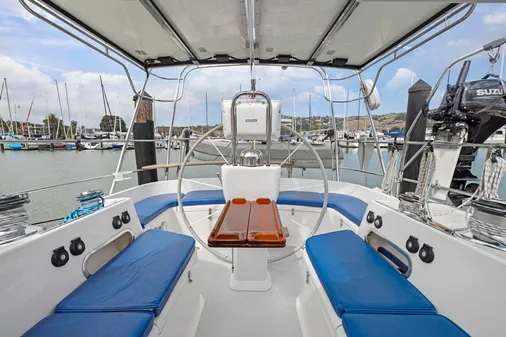

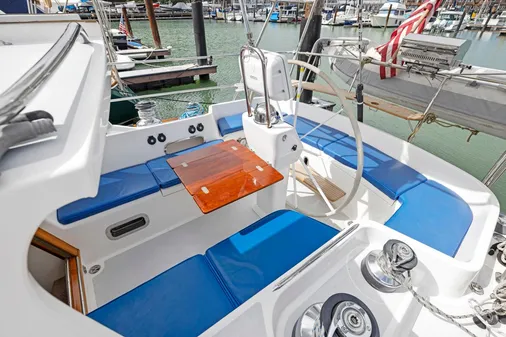

Cockpit
- Large cockpit perfect for extended cruising.

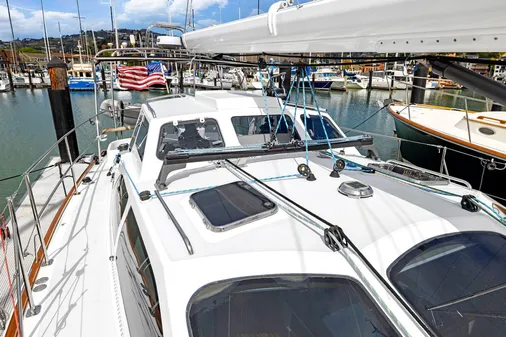

- Custom fiberglass dodger with (2) opening front windows and overhead dome lights
- Canvas Bimini
- Teak drop boards with storage bag. Folding teak helm step. Teak seat mounted to stern rail.
- Teak cockpit table with (2) leaves, with canvas storage bag.
- Cockpit cushions

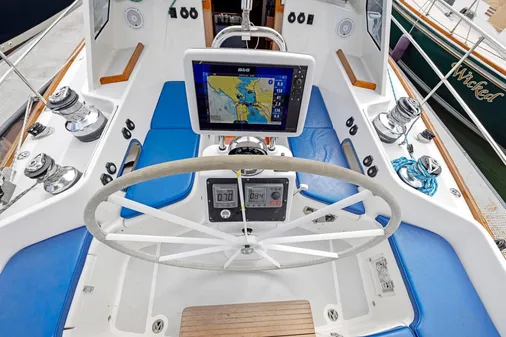

- Edson Classic 401 pedestal with through shaft wheel brake, single lever control, SS guard and 54" Diamond series aluminum wheel

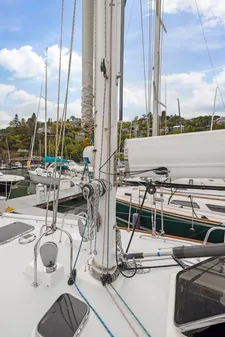

Spars and Rigging
- Offshore Awlgripped white (re-painted 2020) Carbon Fiber two-spreader mast
- New mast wiring (2020)
- Majority of running rigging replaced in 2020
- Forespar carbon fiber spinnaker pole

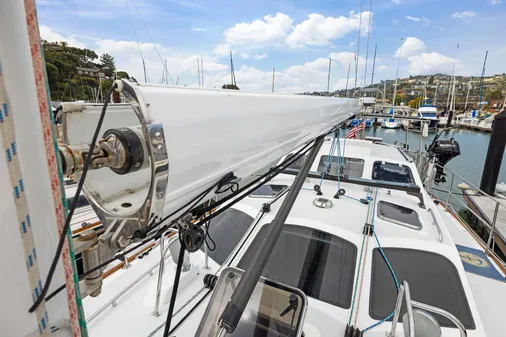

- Leisure Furl aluminum mainsail boom furling system
- Hydraulic boom vang (new 2020)
- SS rod rigging (new 2020)
- Harken Roller-Furling genoa furler
- Removable inner forestay and running backstays
- Navtec -17 hydraulic back stay adjuster
- Rebuilt backstay ram (2021)
- Harken Big Boat Traveler System
- Harken Big Boat Adjustable Genoa Tracks

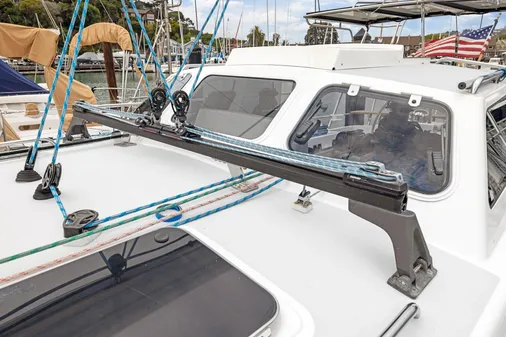

- Lewmar Rope Clutches
- Masthead Tricolor light, deck light (new 2020)
- Storm trysail track
- VHF antenna (new 2020)
- New windex (2020)

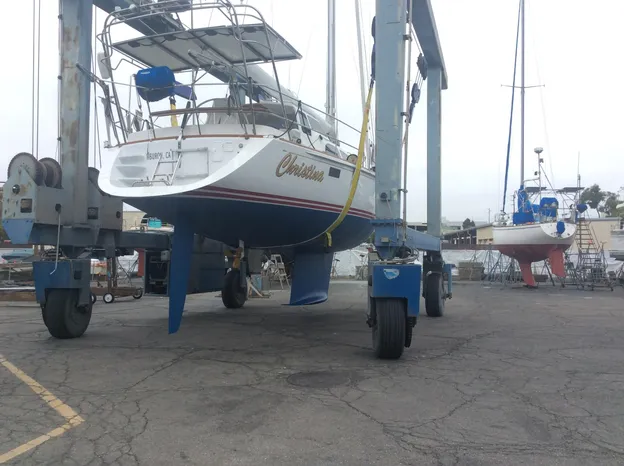

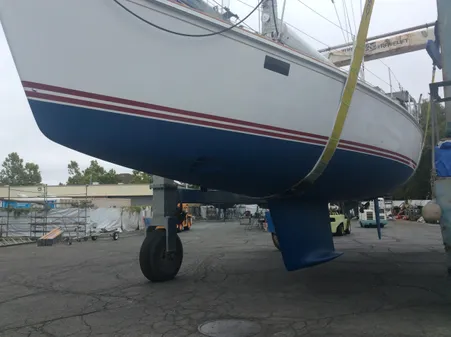

- Rudder removed, inspected, cleaned and re-installed in 2021
Sail Inventory
- North Sailsa 3DL Spectra 105% furling jib
- North Sails furling gennaker (2016)
- Ullman Sails Asymmetrical spinnaker w/snuffer
- Hood 95% furling jib (2021)
- Storm jib

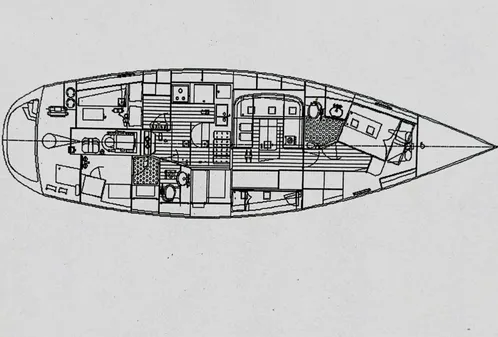

Accommodations
- Large master cabin and in-suite head.
- U-shaped dinette with settee.
- Full galley opposite nav station.

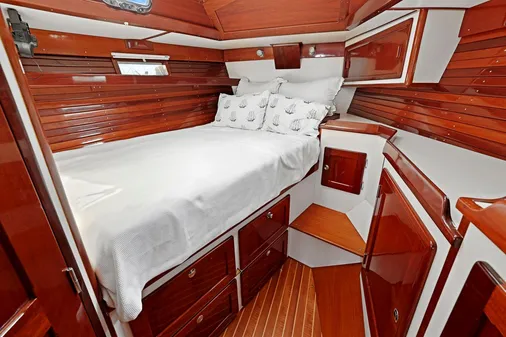

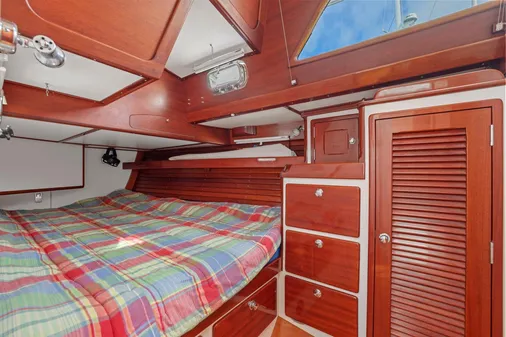

- Large double berth cabin with drawers below and overhead storage locker. Starboard dresser with countertop and two fixed hull portlights.

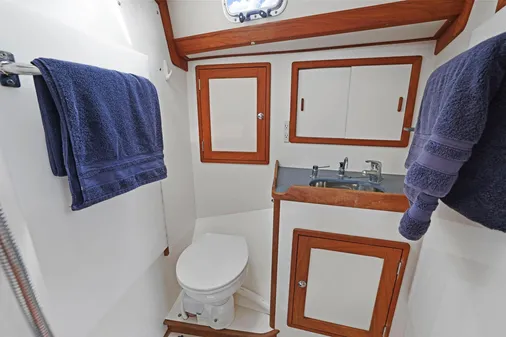

- Large aft head with separate shower. Molded fiberglass floor with integral sump and grate. Vanity and Scandvik SS mirror and bulkhead mount shower.
- Washer/dryer

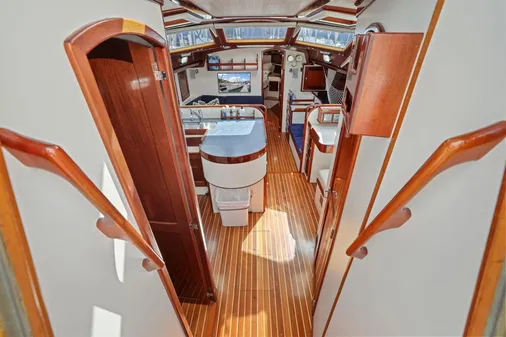

- Teak and holly cabin sole finished with satin varnish
- Overhead finished with white v-groove panels
- Retractable shades over portlights

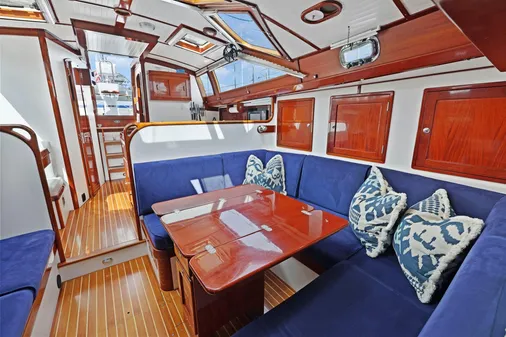

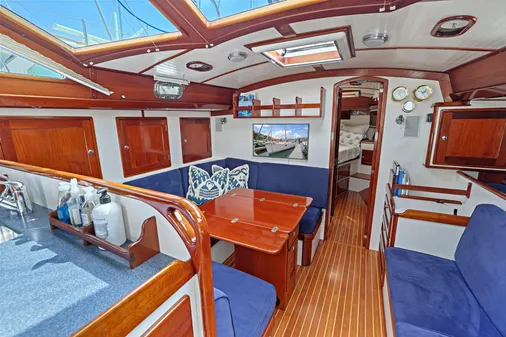

- In Main Salon: U-shaped dinette, single center seat, plenty of storage, mahogany bookshelf

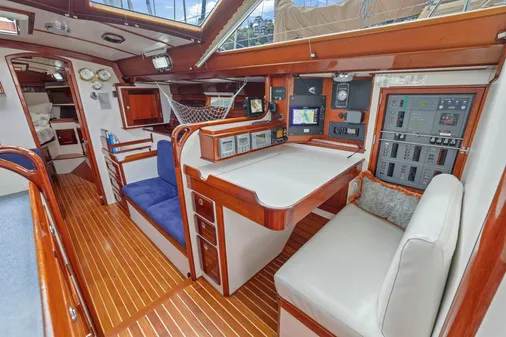

- Navigation Station: nav station with opening top for chart storage, tool tray, plush seat, shelving for electronics and books
- 27" flat screen TV (new 2023)
- Entertainment: Fusion MS-RA 70NSX stereo -A/V receiver (new 2023)
- Flush mount speakers
- Diesel heater

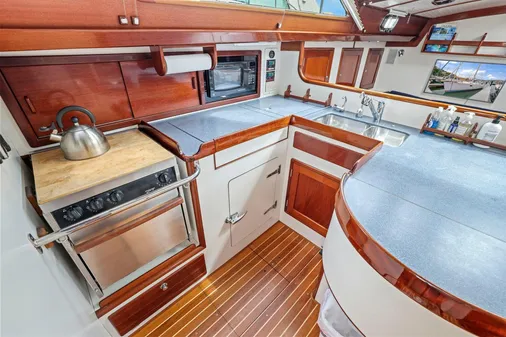

Galley
- Spacious U-shaped full galley with plenty of convenient storage
- Corian countertops, Scandvik SS under-mounted double bowl sink.
- Outboard storage locker with sliding doors
- Fiberglass icebox approximately 10.5 cubic feet, divided into fridge and freezer compartments. Adjustable shelves. 12V DC refrigeration with individual controls for each box.
- Three-burner propane stove with oven and broiler and SS crash bar
- GE 600W microwave
- Custom dish locker with storage for dishes and glasses
- Spectra watermaker
Electrical

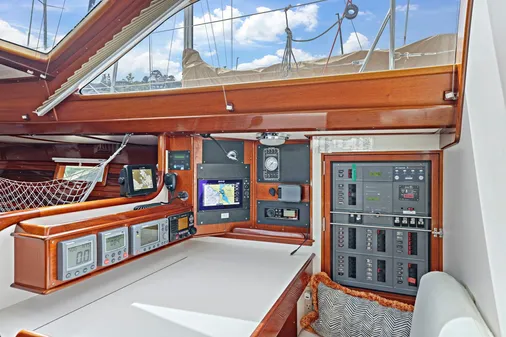

- Mastervolt custom layout panel with AC and DC breakers, controls for generator and remote battery switches
- Mastervolt chargemaster (new 2020)
- (4) 4D AFM House batteries (2017)
- (2) Optima AGM starting batteries
- Amptech 140 Amp 12-Volt alternator
- 30 amp shorepower inlet and cord
- Mastervolt 2500-watt inverter (new 2020)

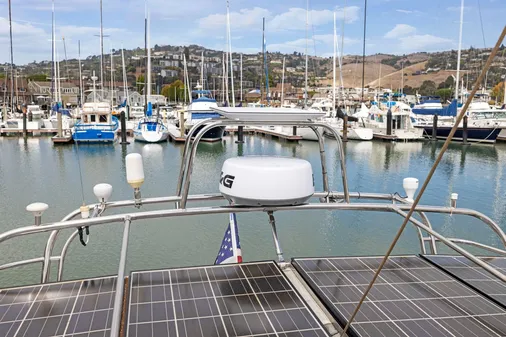

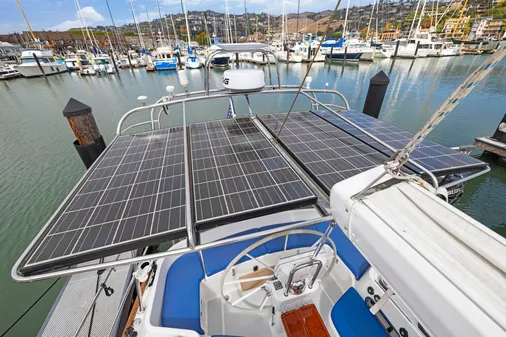

- Solar panels on dodger and bimini frames
- Adjustable lighting throughout
Safety and Auxiliary Gear
- Achilles lOlt RIB with 9.9.Suzuki outboard motor (new 2023)
- 6-man life raft (certified 2021)
- (2) Electric Johnson bilge pumps
- Edson high capacity manual bilge pump in cockpit
- (3) dry chemical fire extinguishers
- Life sling MOB device
Instrumentation

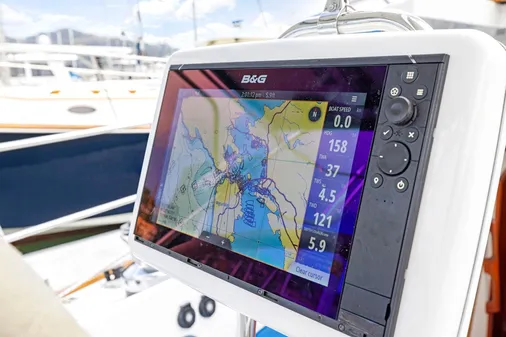

- B&G chartplotters (Zeus 12" & 9") & radar (new 2024)
- Navpod at helm
- Raymarine autopilot

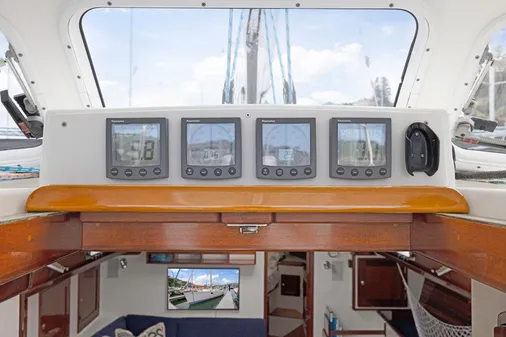

- Raymarine depth, speed, wind, and compass
- Raymarine wireless autopilot handheld control
- Halo 20" radar dome (new2023)
- Starlink (new 2024)
- s30-7 tank tender (new 2023)
